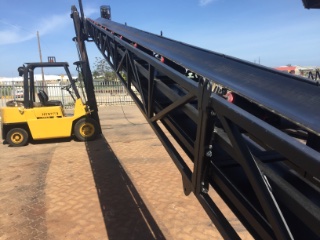

9m / 13m Conveyor

Our electric, modular Conveyor is a lightweight, compact solution that enables efficient transfer of materials.

Conveyor Applications

  • On construction sites for moving materials such as concrete, bricks and mortar
  • can be used to convey material up/down a slope

Features

  • Single-phase electric drive system is removable and easy to install once conveyor is in place
  • Lightweight for easy handling and on-site installation
  • Troughing idlers with vibrating return idlers keep the conveyor belt clean
  • Modular design allows 9m or 13m configuration
  • Easy to transport and install on-site
  • 30m neoprene electric cable
  • Manufactured in South Africa with all spare parts locally available

Specifications

  • Incline: max 35°

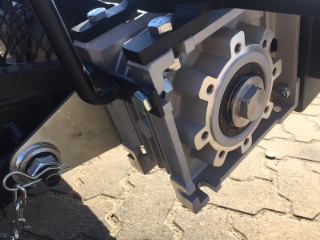

  • Geared Motor 2.2KW 220V T/ARM
  • Frame dimensions: 500mm x 380mm
  • Belt dimensions: 350mm wide
  • Modular sections available: 3 x 4.5m modules – to be used as a 9m or 13m conveyor
  • Conveyor Weight: +/- 350 kg
