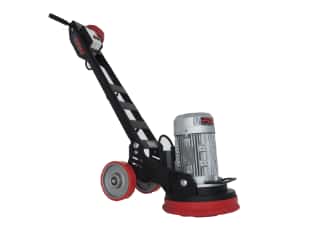

Floor Grinder FG-300SE

Floor Grinders use horizontally rotating discs to grind, polish and restore various different surfaces. They perform a multitude of tasks including light texturing to open the pores of the surface to removal of adhesives and paints. Because floor grinders use rotary action rather than pummeling impact to remove material, the depth of material removed is much less than when using a scarifier.

Floor Grinder Applications

The  floor grinder FG-300SE with swivelling head is ideal for small to medium size jobs requiring a 300mm grinding diameter such as:

  • Finishing concrete floors to a smooth surface
  • Removing surface covering and smoothing rough surfaces
  • Leveling uneven surfaces

Features

The floor grinder FG-300SE is constructed for demanding work environments and made out of heavy structure with ergonomic layout and components resulting in better productivity and less operator fatigue. Features include:

  • The self-levelling swivel head and proprietary coupler ensure perfect alignment between the grinding disk and the surface, extending the life of the grinding disk
  • Connection for vacuum port
  • Adjustable handle for different heights
  • Floating skirt for efficient dust containment
  • Control switch is situated within easy reach of the operator
  • Deadman cut-off switch prevents unattended operation
  • Robust design

Specifications

  • Weight: ±66 kg

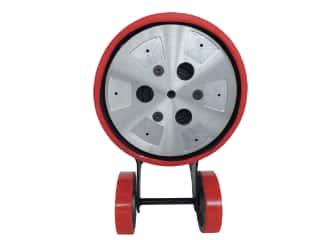

  • Grinding disk diameter:  300mm (12″) Diamond blocked
  • Disk RPM: 1400 RPM
  • Minimum working distance from wall: 20mm
  • Motor: 3 kW 220V single phase 50 Hz, 18.5 Amp
