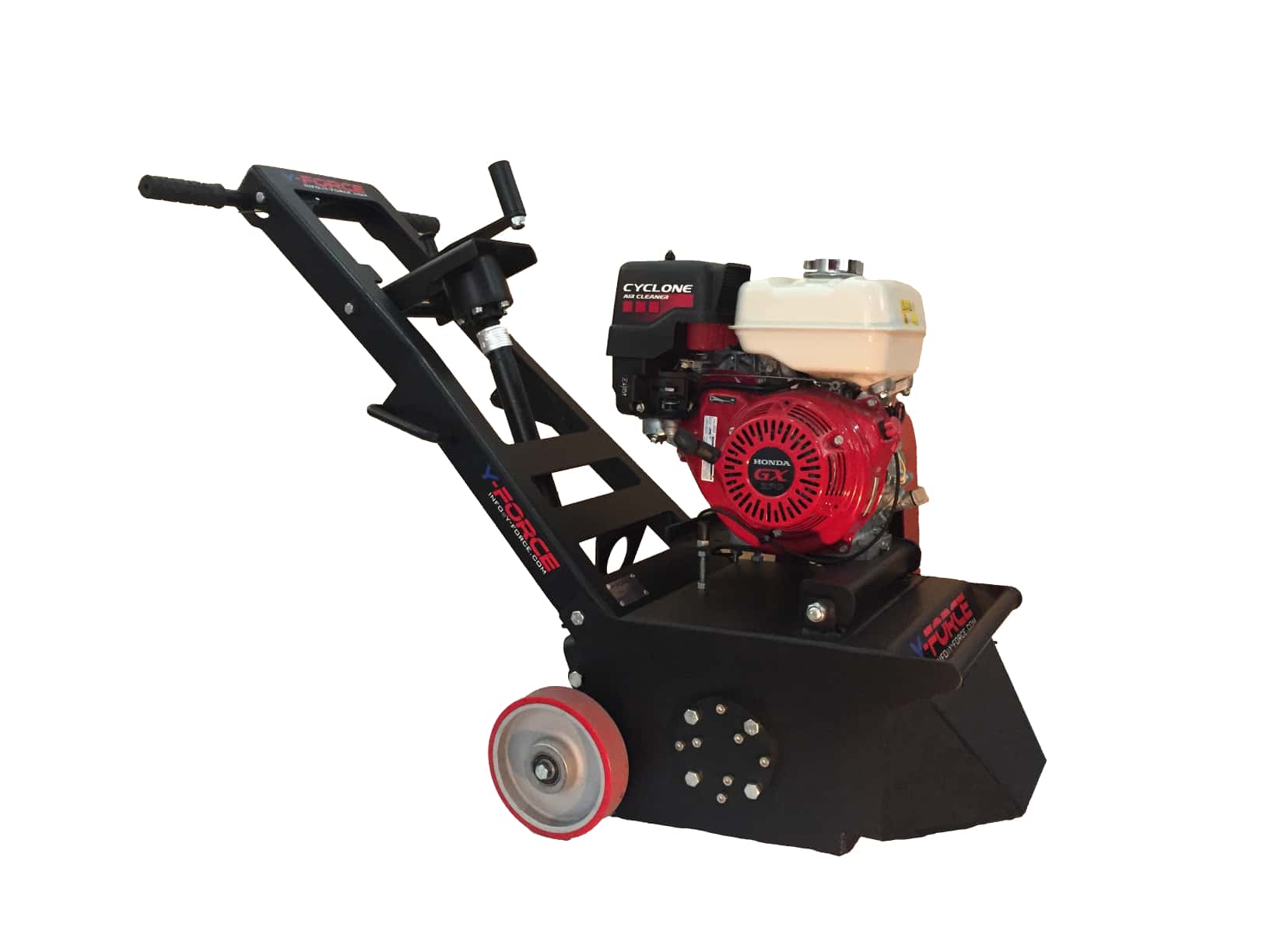

Scarifier SC-300P

Proper surface preparation is essential to achieving good results when planning to overlay or restore existing concrete. Scarifiers, also known as surface planers or milling machines, remove concrete faster and more aggressively than grinders. This is due to the pummeling action of multi-tipped cutting wheels, or flails that rotate at high speeds to chip away at the concrete surface.

Scarifier Applications

The SC-300P floor scarifier is ideal for medium to large jobs requiring a 300mm cutting width such as:

  • Planing or keying concrete
  • Removal of stone roofing material, painted lines, soiling and grease
  • De-scaling and removal of paint, vinyl and other coatings from concrete and steel floor
  • Preparation of floors for painting or re-surfacing

Features

The SC-300P Scarifier is constructed for demanding work environments and made out of a heavy structure resulting in better production and less operator fatigue. Features include:

  • full-welded 6-10mm housing
  • Accurate cut-depth control within 0.75mm with position lock
  • Vacuum port for dust collector hose attachment
  • Deadman cut-off switch
  • Extra lifting handles for ease of loading/unloading and for crane lifting harness
  • Easy maintenance design
  • All spare parts locally available

Specifications

  • Weight: 180 kg
  • Cutting Width: 300mm

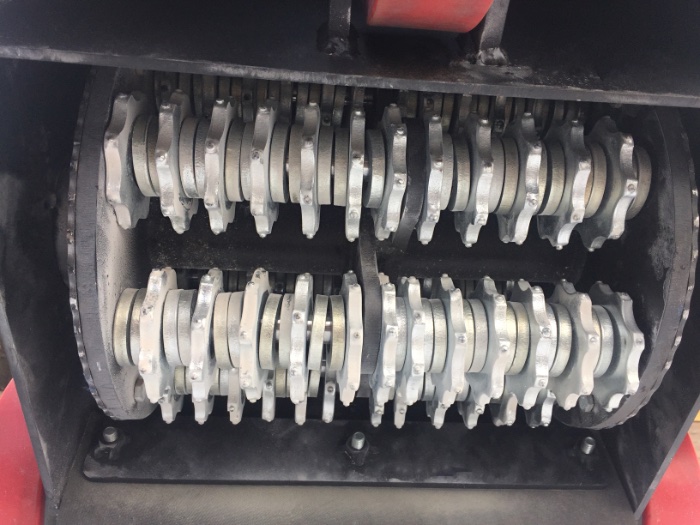

  • Cutter Drum: 6 shafts with 72 Flails
  • Cutter Drum has 1,400 to 2,500 rpm operating range
  • Minimum working distance from wall: 16 cm
  • Engine: 9hP (6.7 kW) Honda GX270QXC 4-stroke
