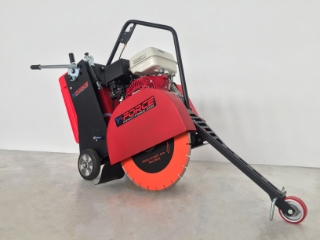

Floor Saw FS-500P

Floor Saws, also known as concrete cutters, are designed for heavy-duty construction work requiring a portable, robust solution. Our Floor Saws are walk-behind and petrol operated.

Floor Saw Applications

The Floor Saw FS-500P is ideal for small to medium size jobs requiring a 250mm – 500mm diameter blade such as for cutting:

  • Concrete
  • Reinforced concrete
  • Asphalt road surfaces

Features

The Floor Saw FS-500P is constructed for demanding work environments with a fully welded, high strength frame. Features include:

  • Heavy-duty, removable plastic water tank with 48 litre capacity
  • Lifting Frame for ease of loading/unloading
  • Manual lifting screw system for adjusting cutting depth
  • Accurate cut-depth control within 0.5mm with position lock
  • Robust adjustable follower arm
  • blade cooling system
  • Fully adjustable handles for operator comfort
  • Quick-remove blade guard for efficient blade changes
  • High durability plastic V-belt safety guard

Specifications

  • Weight: 140kg
  • 48 litre water tank
  • Blade diameter: 250mm – 500mm with 25.4mm ID
  • Blade RPM: 3,000 – 3, 600 RPM
  • Engine: 13hp (9.6kW) 4-stroke, OHC petrol – pull-start
