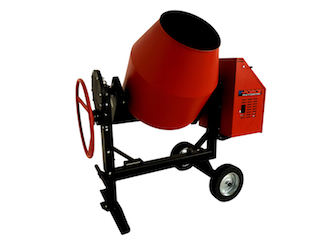

Concrete Mixer CM-350P

Concrete mixers homogeneously combine cement, aggregate such as sand or gravel, and water to form concrete

Concrete Mixer Applications

The Concrete Mixer CM-350P is ideal for the bulk mixing of concrete on site.

Features

The Concrete Mixer CM-350P is constructed for demanding work environments and made out of high-strength construction with full welded housing. Features include:

• Extremely low noise level due to drive system design
• Simple maintenance
• Transfer case driven for extra safety (no ring- & pinion gear)
• Replaceable drum paddles
• Fully enclosed, high durability tilt control gearbox
• Sling eyes and forklift slots for easy lifting
• Heavy duty industrial wheels
• Ventilated canopy
• Manufactured in South Africa with all spare parts locally available

Specifications

• Capacity: Unmixed 350 L / Mixed 300 L
• Drum speed: 24 – 30 rpm
• Mass: 280kg
• Drum mouth diameter: 450mm
• Heavy Duty Drum with 4mm walls and 5mm base thickness

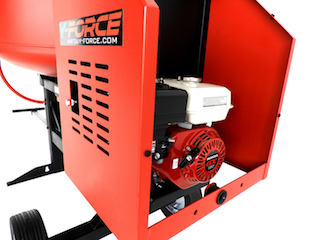

• Engine: Honda GX160LX or TORX XT196CHR (220V Electric option available on request)
